 Original Period Correct Items


Document

Description

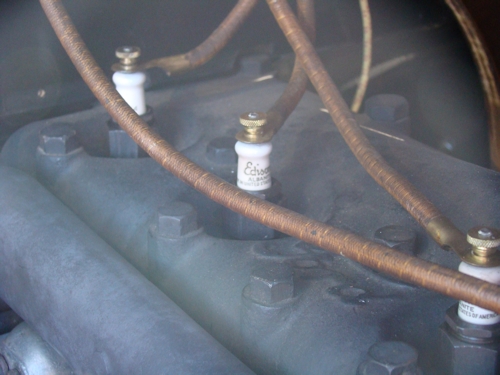

Spark Plugs
Manufacturer: Edison

Part Number: No. 14

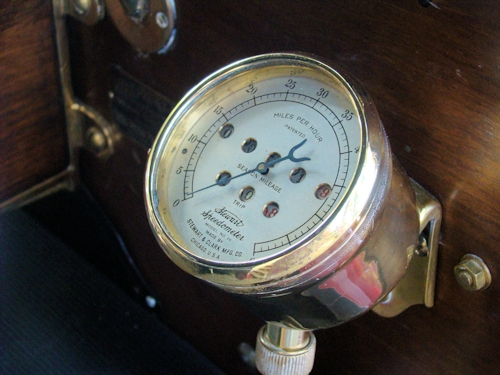

Speedometer
Manufacturer: Stewart

Model Number: 26

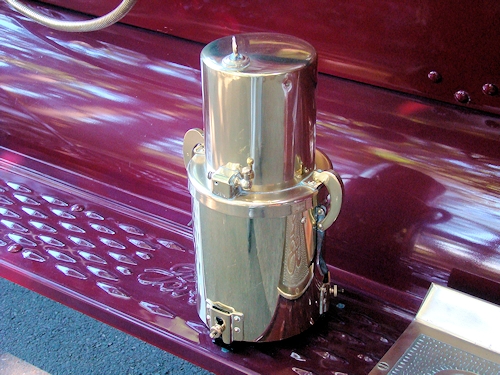

Carbide Generator
Manufacturer: E & J

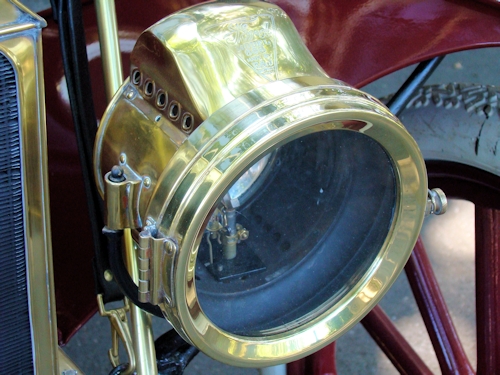

Acetylene Headlamps
Manufacturer: E & J

Model Number: 666

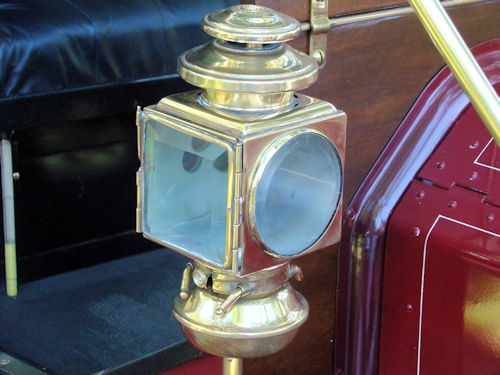

Kerosene Side Lamps
Manufacturer: E & J

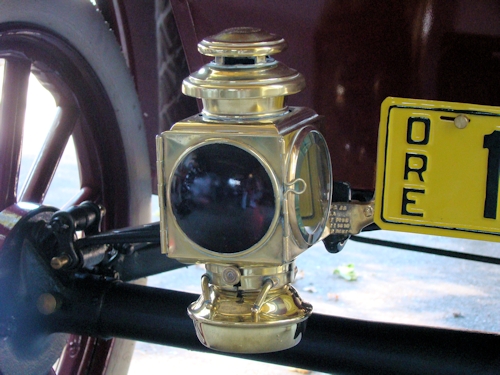

Kerosene Tail Lamp
Manufacturer: E & J

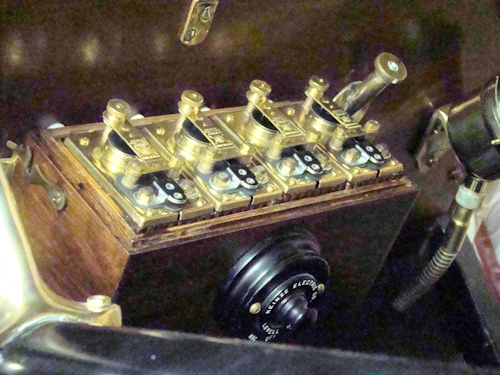

Original Brass Top Ford Coils
Manufacturer: Ford

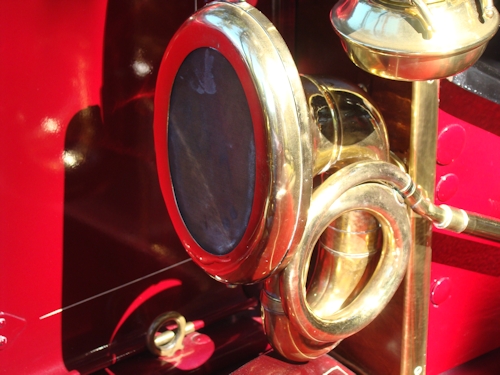

Bulb Horn
Manufacturer: Nonpareil

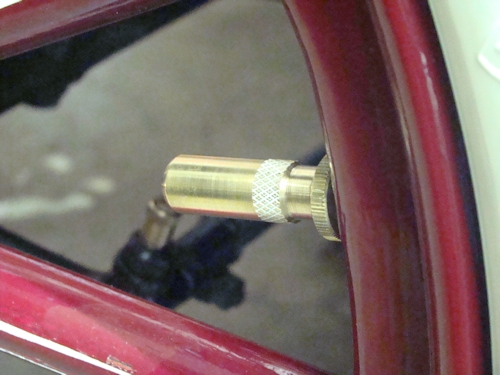

Metal Stem Inner Tube, Flap and Hardware

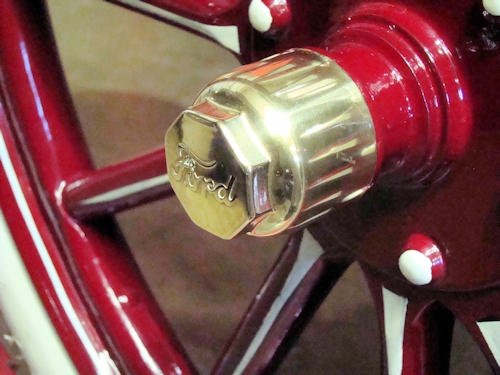

1911 Ford Script Hubcaps
Per Blueprint Dated: September 12, 1910

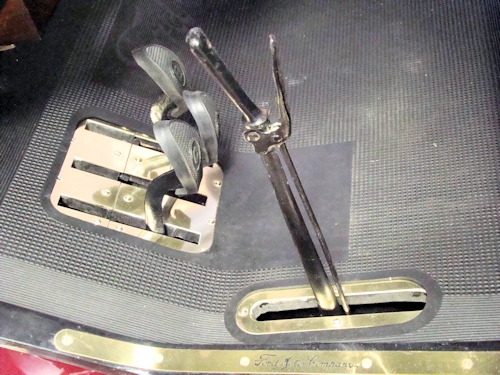

Brass Floor Trim
Pedals and Hand Control



 Original Period Correct Accessories


Document

Description



Brass carburetor mixture control
For accurate and firm control of fuel/air ratio of the Kingston carb.

Using period correct accessory and modern parts

Manufacturer: SWAN



Firestone Non-Skid All-White Tires
Coker Tires: 30x3 Front, 30x3.5 Back

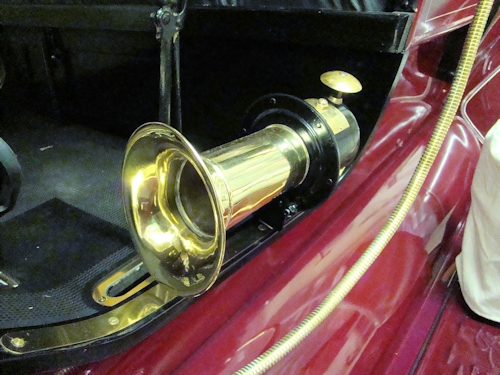

Hand Klaxon
Manufacturer: Lovell-McConnell Mfg. Co.

Serial Number: 20177

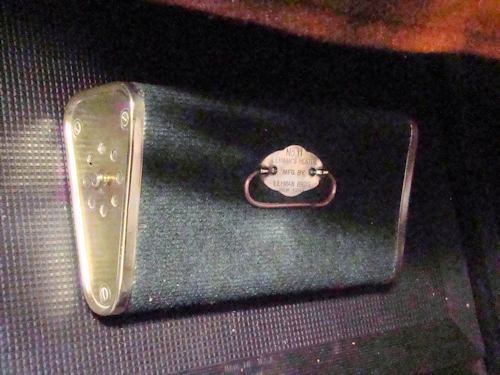

Coal Box Heater
Manufacturer: Lehman

Part Number: No.11

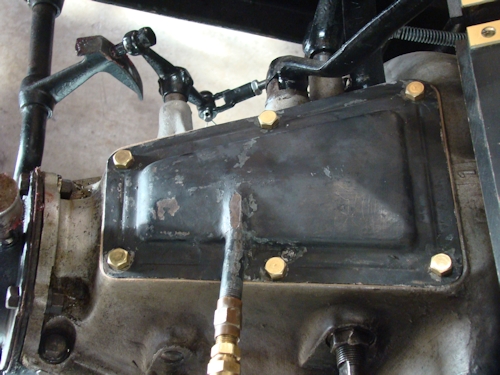

Safety Oiling System

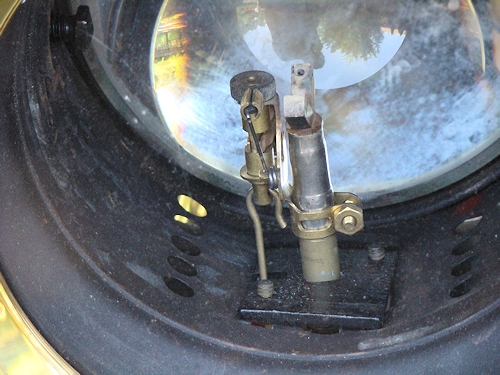

Carbide Friction Lighter
Part Number: L-470

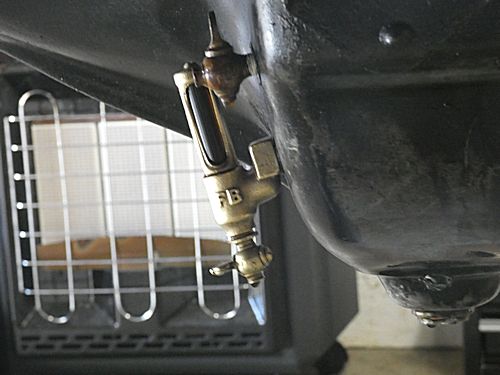

Oil Sight Glass

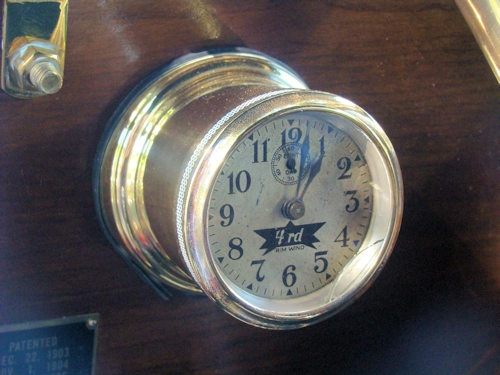

Brass Rim-Wound Dash Clock
Manufacturer: Phinney Walker

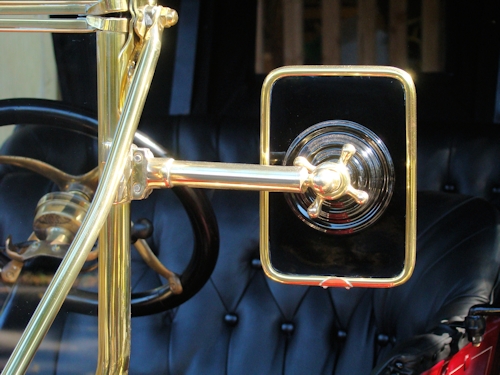

Rear View Mirror

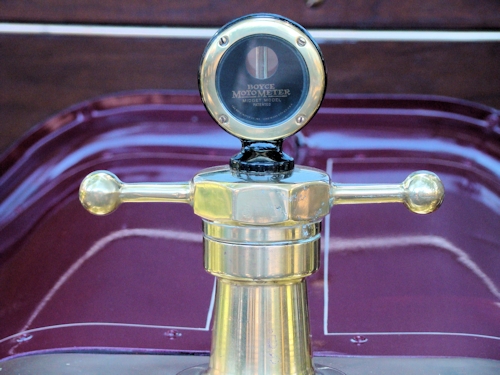

Radiator Meter & Dog Bone Cap
Manufacturer: Boyce MotoMeter

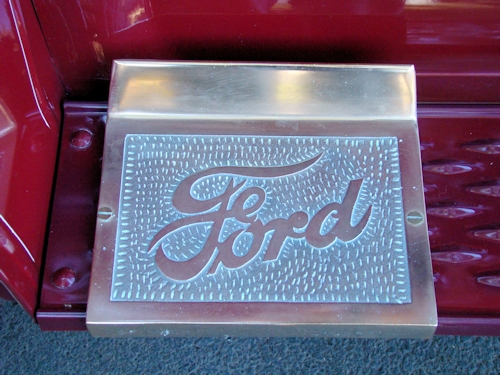

Rare edge protected brass Step Plates
Used for entrance in back on both running boards

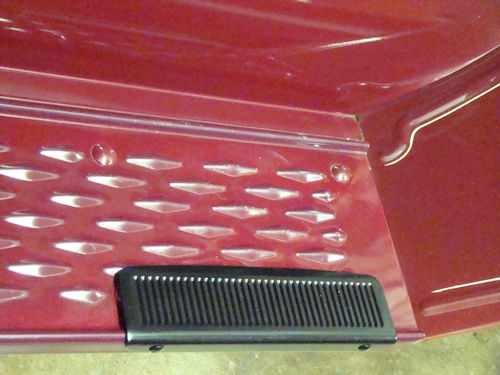

Edge Step Plate
Used for entrance in front on right running board.

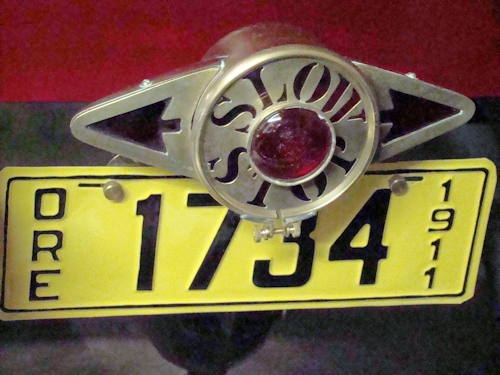

Brass Era "All-In-One" Rear Light Assembly
Includes the Rear Light, Stop, Slow, Right Turn and Left Turn.

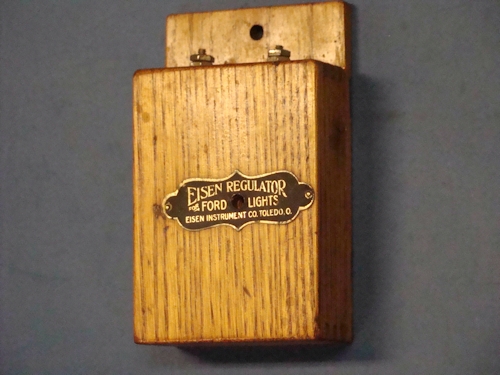

Eisen Regulator for Ford Lights
Manufacturer: Eisen Instrument Co. Toledo, O.

Lakeside Gauge for Ford Cars
Manufacturer: The ACME Sales Co.

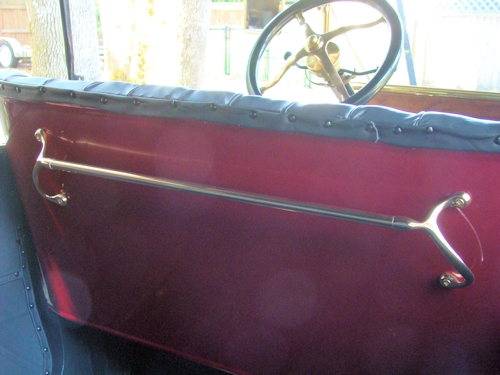

Brass Robe Rail
Part Number: T-3680-B





Brass Foot Rest

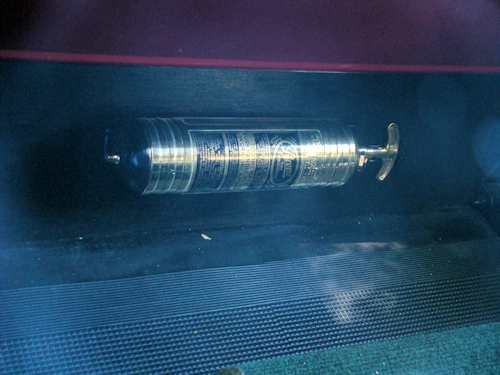

Brass Fire Extinguisher
Manufacturer: Pyrene Mfg. Co.

Serial Number: 240572

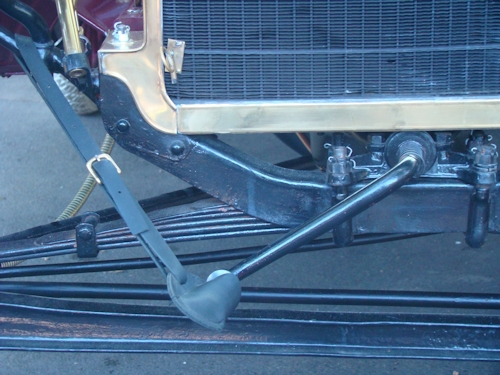

Crank Holder

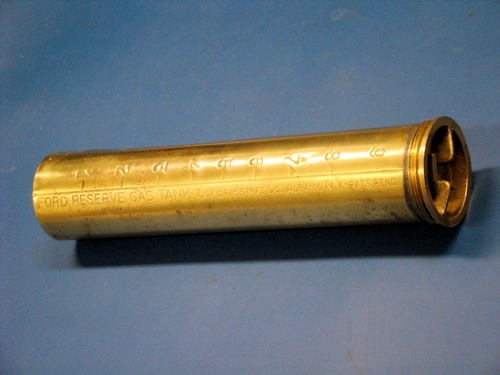

Ford Reserve Gas Tank
Manufacturer: Cox Brass Mfg. Co.

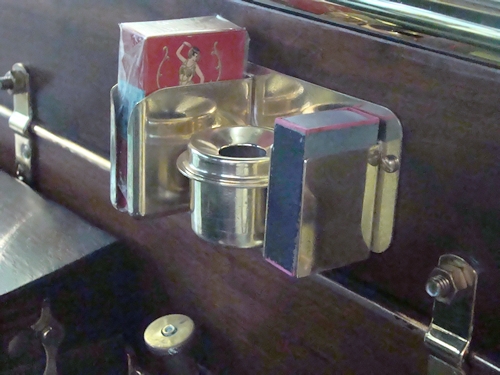

Eclipse Smoke Tray
Manufacturer: Eclipse Timer Mfg. Co.

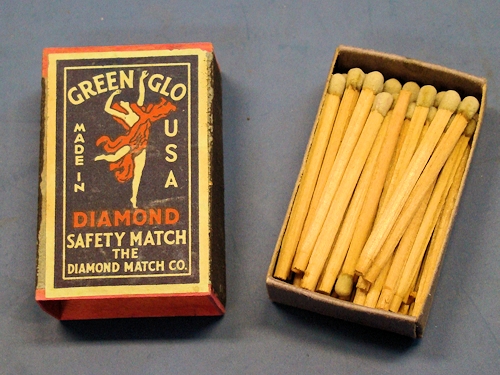

Vintage box of matches
Green Glo Diamond Safety Match

Vintage pack of sealed cigarettes
Salome Ideal cigarettes gold

Carriage Robe
Manufacturer: L. C. Chase & Co.

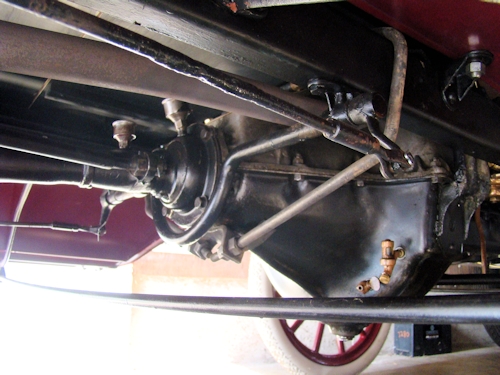

Belly Pan Support
Stamped: TRUSKC PAT'D

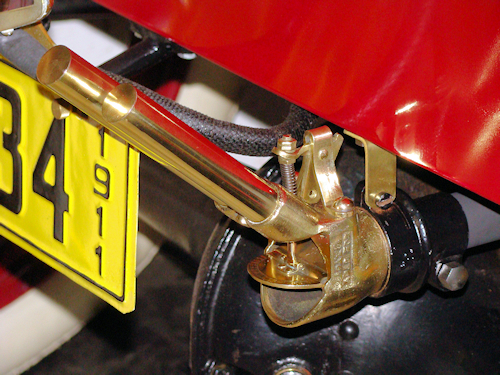

The "Waymaker" Exhaust Horn
Manufacturer: The Lee Tire and Rubber Company





Brass Exhaust Whistle Pedal
Manufacturer:



 Modern Accessories


Document

Description

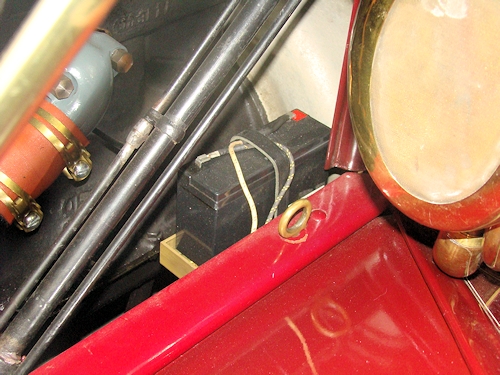

Starting Battery with Brass Tray and Leather Strap
To assist with crank starting

Part Number: UB6120

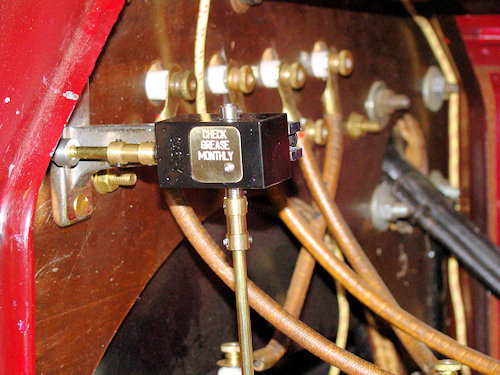

Carburetor mixture control gear box
For accurate and firm control of fuel/air ratio of the Kingston carb.

Using period correct accessory and modern parts

Manufacturer: Boston Gear 18T, 15T (1:1.2 Ratio)



 Useful Tool Information

Part Description

Tool Used

Oil Pan Service Bolt

15/16" Wrench / Socket

Spark Plugs

15/16" Deep Socket



 For The Toolbox


Document

Description

Part Number

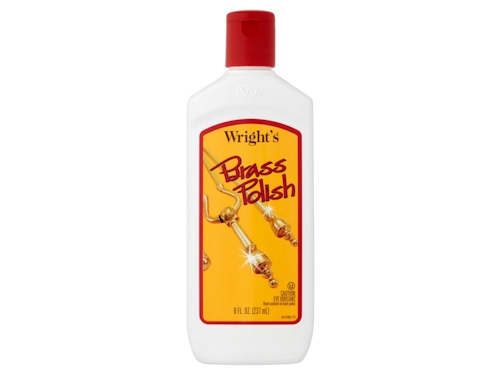

Wright's Brass Polish





 Useful Things to Know


Document

Description

Part Number





Oil Change Capacity
4 Quarts







Minimum Idle Throttle Position
3/4 Turn





Wheel Control Guide





Body Color: Crimson Red
Industrial Finishes: 503-644-3767

Part Number: PPG: 3559



Lakeside Gasoline Gauge Scale
Size: 9" x 1"

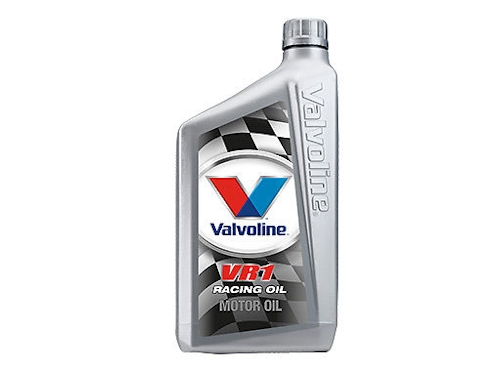

Recommended Oil
10W-30 Racing Oil (High Zinc Formula)

Valvoline VR1

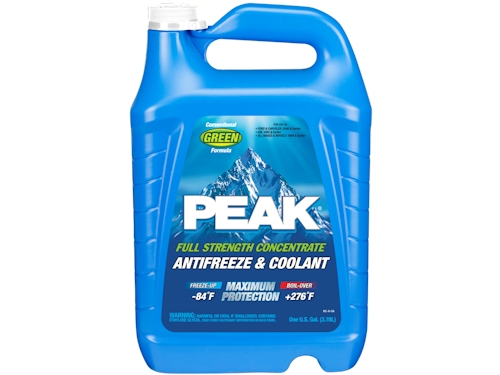

Recommended Radiator Coolant
Conventional Green Formula

Peak: Green



 Literature


Document

Description

Original Instruction Book
Very Rare Original Issue

Original Late 1911 Brochure
Very Rare Original Issue

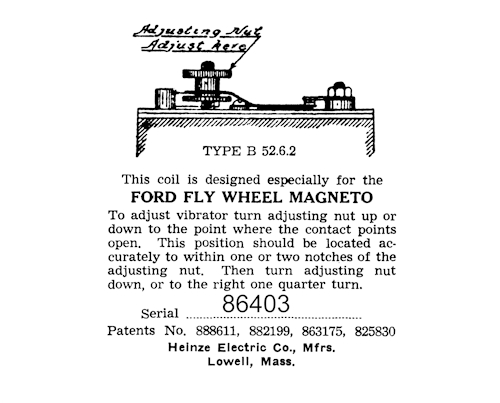

Heinze Label
Location: Inside lid of Coil Box



 General Maintenance Records

Date

Odometer

Description

Part / Document

07/18/2015

Unknown

Acquired Car

10/24/2015

Unknown

Lau Garage Sale
Many original car parts purchased

N/A

12/14/2015

Unknown

Flushed Cooling System

N/A

12/19/2015

Unknown

Replaced Fan Belt
23" Leather Fan Belt

3964L

12/20/2015

Unknown

Removed Accessory Water Pump

Unknown

12/20/2015

Unknown

Replaced Rotted Top Water Neck

3004

12/20/2015

Unknown

Replaced Missing Side Water Neck
Original NOS (New Old Stock)

3015NOS

04/14/2016

Unknown

Replaced Hogs Head

N/A

05/18/2016

Unknown

Replaced Exhaust Manifold
Original was warped by over 1/2"

T-4483

05/21/2016

0000.0

Replaced Bad Jones Speedometer
An original working Stewart Model 26

Model 26

05/27/2016

0000.5

Replaced Speedometer Cable

05/29/2016

0000.5

Oil Change
SAE 30 Racing Oil (High Zinc)

Valvoline: VV-223

05/30/2016

0000.5

Her Maiden Voyage!

N/A

07/07/2016

0001.9

Replaced Coils
Original Rebuilt Coils

N/A

08/19/2016

0003.6

Replaced Fuel Shut-off Valve

Parker: 4Z-V4LR-B

11/04/2016

0016.2

End of First Season
Total Mileage: 15.7

N/A

03/26/2017

0016.3

Replaced Tires, Tubes and Flaps

Coker: 30x3/30x3.5

03/27/2017

0016.3

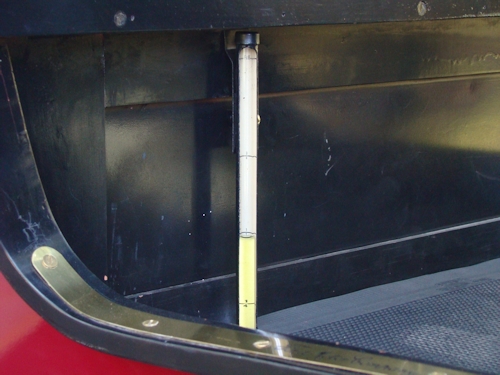

Rebuilt Fuel Gauge

N/A

03/28/2017

0016.3

Oil Change
SAE 30 Racing Oil (High Zinc)

Valvoline: VV-223

03/31/2017

0016.3

General Maintenance
Spark Plug, Lubrication Points Serviced

N/A

04/22/2017

0016.3

Start of second season

N/A

05/20/2017

0023.0

Welded crack in LH arm mount

N/A

07/17/2017

0028.2

End of second season
Total Mileage: 11.9

N/A

08/31/2017

0028.3

Special Showing
Debbie's Memorial Service

N/A

05/19/2018

0028.3

Start of third season
Senior PROM 2018

N/A

08/26/2018

0032.2

End of third season
Total Mileage: 3.9

N/A

10/20/2018

0032.2

Replaced Engine Fan Assembly
Original parts and design

N/A

11/15/2018

0032.2

Replaced Radiator Drain Cock
Original parts and design

N/A

11/15/2018

0032.2

Radiator Flush/Coolant Change

Peak: Green
